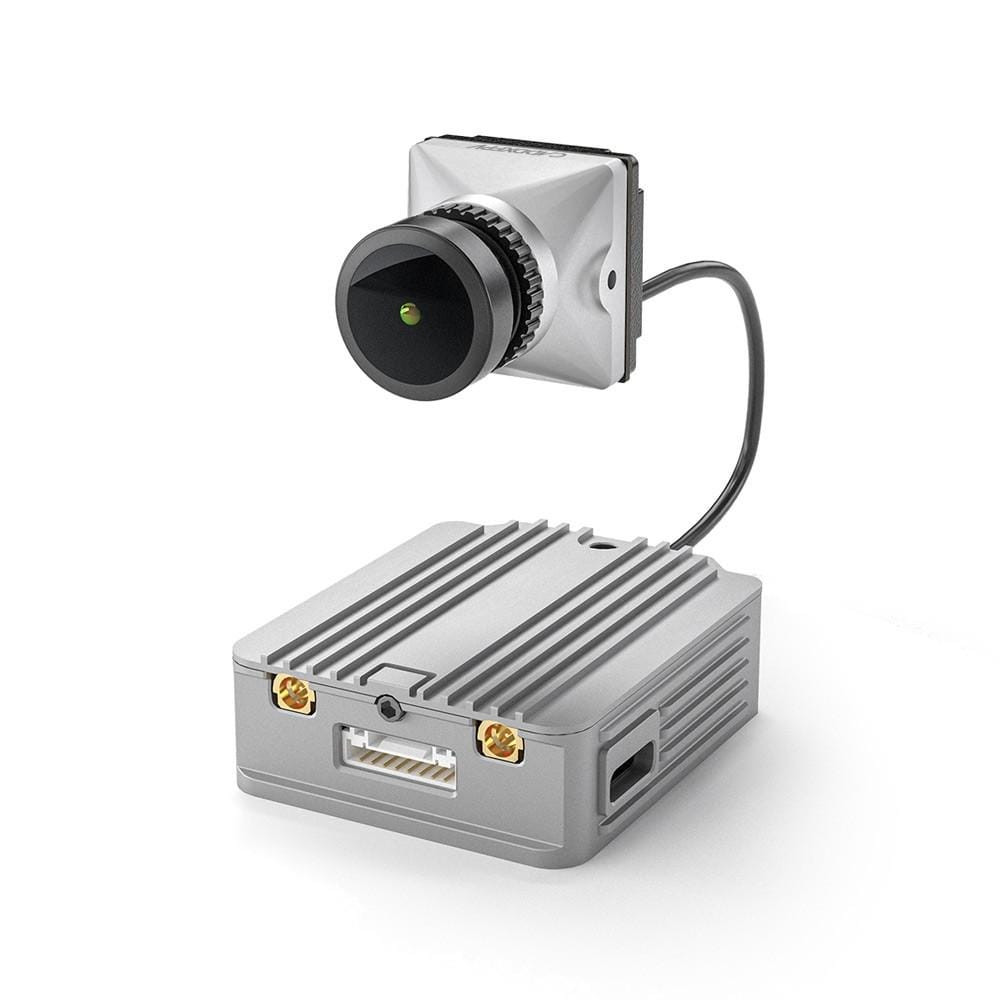

The Caddx Polar Micro Vista Unit is an advanced video transmission module that supports a 5.8 GHz digital video signal and 720p 60fps image transmission, with a transmission range of up to 4km and a minimum end-to-end latency within 32 ms. The vista unit can be mounted on a racing drone and used with DJI FPV Goggles or a remote controller to transmit video, control signals, and flight controller information wirelessly!

Features

• Lightweight digital image transmission combination
• Stable and clear HD video
• 720p 120fps, 32ms/4km
• 8 channels, 8 drones

Specifications

• Transmitter Power(EIPP): FCC/SRRC: <30dBm; CE: <14dBm
• Max.Transmission Distance: FCC/SRRC:4km;CE:0.7km
• Operating Temperature Range: 0°to 40°C（32°to 104°F）
• Image Sensor: 1/1.8" Inch 2.3Mega starlight sensor
• Supported Flight Control System: BetaFlight
• Min.Latency(end-to-end): 720p 60fps<32ms
• Polar vista kit Weight (Include camera): 28g
• Operating Frequency: 5.725-5.850GHz
• I/O Interface: USB-C,IPEX,3-in-1 port
• FOV: 162°(D); 138°(H); 75°(V)
• Min. Illumination: 0.00003Lux
• Antenna Weight: 1.5g(IPEX)
• Polar cam: 24×19×19mm
• Input Power: 7.4-26.4V
• Coaxial Cable: 120mm
• LENS: F/1.6 & 8Mega
• Vista: 30×29×13.5mm
• Aspect Ratio: 16:9
• Antenna: 105mm

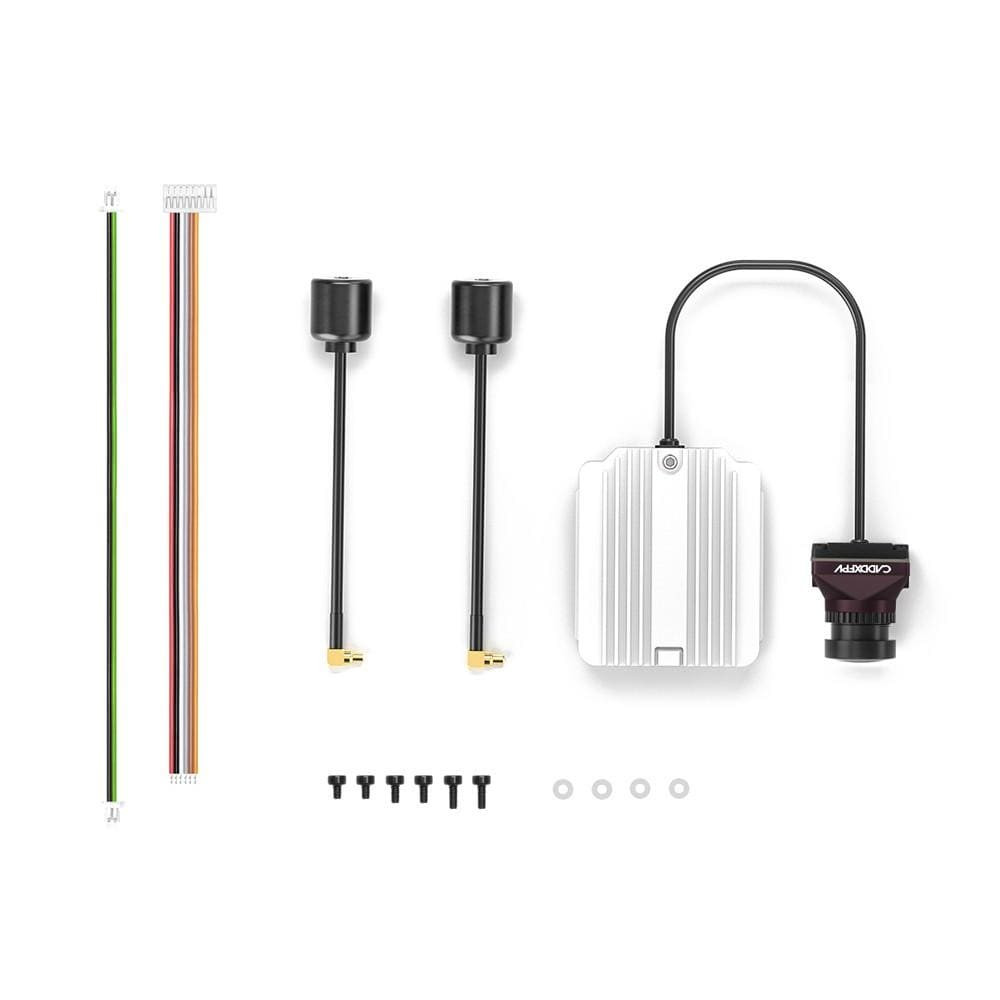

Includes

• 1x Caddx Polar Micro Digital FPV Vista Camera Kit (Silver or Purple options)
• 6x M2 Screws (3/4/5mm)
• 4x Gasket Ring
• 1x 3-in-1 Cable
